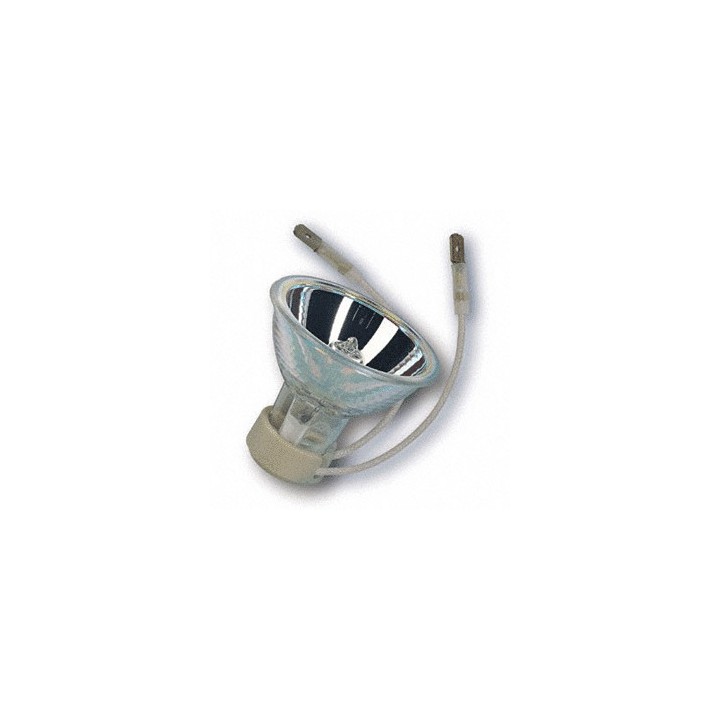

K23D Lampe Halogène 47x49 12v 50w 12999 Réflecteur lisse Dr Fischer

Dr Fischer 12999

K23D Halogène Traffic Fibre Optiques 50W 12V CL FAC

Brûleur halogène optiquement positionné dans un boîtier léger brillant réflecteur dichroïque 50 mm

Product Features

1. Very sturdy and compact light source

1. Corrosion- and heat-resistant flexible cables simplify lamps replacement

1. Cables should be downwards to ensure that filament position is horizontal

1. Deviations of burning position may lead to 30% shorter lifetime

1. It is advisable, independent from the duty cycle, to replace lamps in a group replacement cycle of maximally one year for safety and functioning reasons. Lamp fixation should be done on the glass part and not on the ceramic part to avoid corrosion problems

1. Do not use the rim of the reflector to clamp the lamps. Problems will arise due to tolerances in glass thickness

1. Types for 6 mm and 10.2 mm diaphragm available. Lamp is optimised for a working distance of 42 mm

Product Benefits

1. Allows a high-intensity beam with clearly defined beam spread

1. Cool beam, with some 65% of the infrared radiation transmitted backwards

Application

1. Fibre optic solutions

1. Traffic matrix systems

1. Variable message signs and DRIPs (Dynamic Route Information Panels)

Luminaires

1. Must be used in a closed, dry and very well-ventilated luminaire
