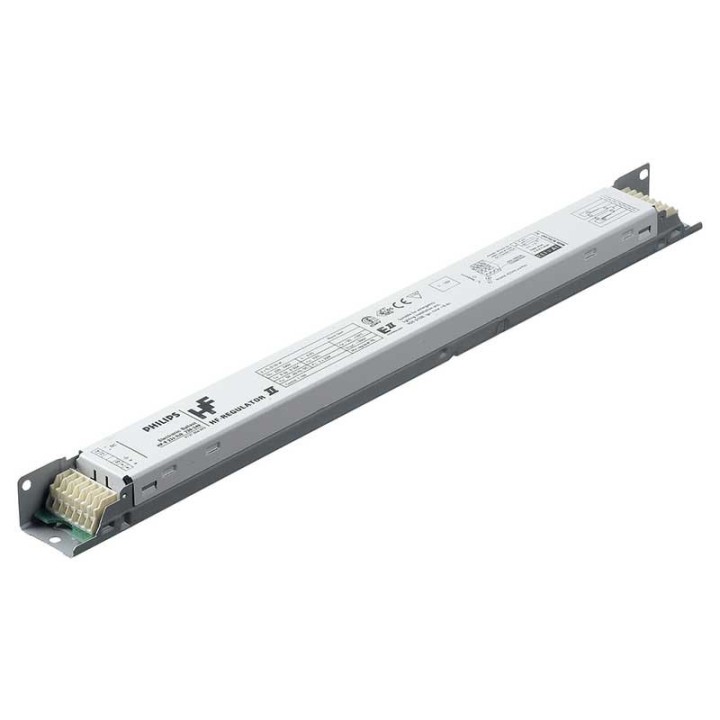

Dimmable electronic ballast for 2 tubes T8 58w or 2 lamps L 55w 1-10V Philips

HF-control TL5/TL-D/PL-L

High frequency electronic ballast for dimming,

using the analog protocol (1-10 V) for TL-D lamps

benefits

Possibility to increase the lamp power from 1 to 100% using the input analog control (according to the industry standard of 1-10 V)
Compliant with European and Asian norms and suitable for emergency lighting systems
HF operation improves the quality of light and the life of the lamp
Additional energy savings can become when combined with commands

functions


Programmed start: flicker-free ignition <0.5 second
and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables on / off
they frequently without reducing life


The Smart power ensures constant light, independent of voltage fluctuations of
sector.

Energy consumption can be reduced up to 60% using automatic control systems lighting


Triggering a shutdown circuit within 5 seconds when lamp failure (safety stop), the ballast resets
automatically after lamp replacement


Application


Indoor lighting applications, and general work areas associated with lighting control systems (individual control connection to natural light and / or motion detection)
