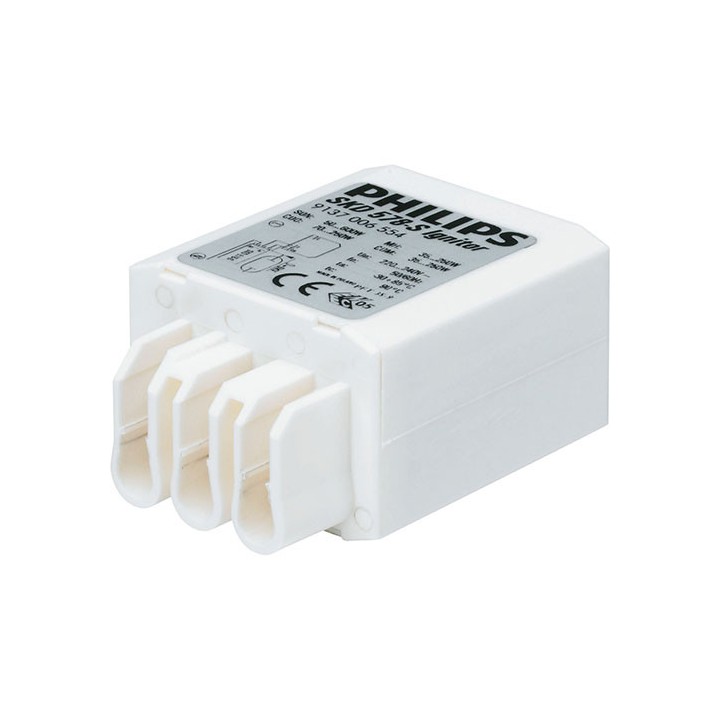

Ignitor SKD 578 35w - 600w 220-240V 50/60Hz PHILIPS

General Characteristics

Number of Lamps 1 piece

Nom. ballast-lamp 35-600

Lamp type SON / CDM / MH / HPI / HPA / CDO

Application code 578

Voltage 220-240 V

Frequency 50/60 Hz

Operating characteristics

Type Semi-parallel boot

Voltage range AC -10% / +10%

Range of tens. pr perf = 100% AC -8% / +6%

Number of firing pulses x 1

Ballast power loss 0.5 W

Minimum voltage for 190 V pulse

Maximum ignition time 1185 (max) s

Number of amor. stop before 3 -

Ignition Voltage 1.80 (min) 5.00 (max) kV

Wiring Specifications

Screw type connector

6.0 mm thread

Wcs Ballast 0.50-2.50 mm2

Temperature characteristics

T-case maximum 90 (max) C

Temperature -30 (min), 85 (max) C

Storage temperature -35 (min), 85 (max) C

Dimensions in mm.

Length A1 67.5 mm

40.5 mm Width B1

C1 28.0 mm height

Characteristics approval

EC declaration Yes

Yes ENEC certificate
