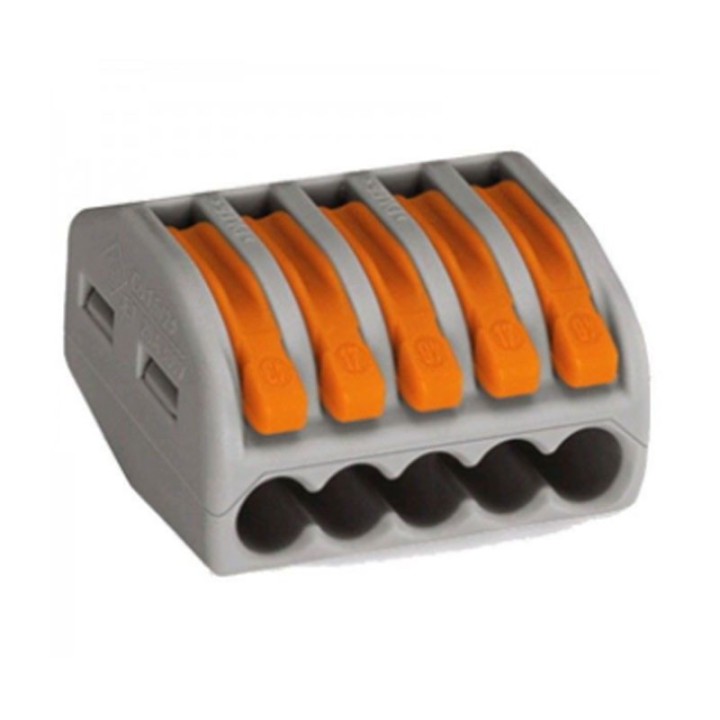

The Wago 222 415 connection terminal is a 5-wire terminal which has a control lever. The product is delivered in a packaging unit with one piece each. The maximum temperature for long-term use is around 85 degrees. The connector color is gray. The weight of the clamp is 6.58 grams. It has a width of 26.6mm and a height of 14.5mm. The depth of the clamp is 20.5 mm.
The clamp is supplied with a CAGE clamp connection. This terminal block therefore allows the connection of solid wires. The terminals can also be used for stranded and fine stranded conductors without tools. They are also suitable for 28 AWG wire.
EAN: 4044918464956
A packaging unit of 1 is provided.
5-wire terminal, with control levers, max. Continuous use temperature 85°C
Other
Name Value Unit
Total number of endpoints 5
Total number of potentials 1
Grey color
Pollution degree (1) 2
Nominal voltage EN (1) [V] 400 V
Rated surge voltage (1) [kV]
Nominal current 4 kV (1) [A] 32 A
Connection technology 1 CAGE CLAMP®
solid, connectable 1 0.08… 2.5 mm² / 28… 12 AWG
stranded, connectable 1 0.08… 2.5 mm² / 28… 12 AWG
finely stranded, connectable 1 0.08… 4 mm² / 28… 12 AWG
stripping length 1 9… 10 mm / 0.35… 0.39 inch
Wiring type Side wiring Fire load [MJ] 0.13 MJ
Weight [g] 6.58 g
Width 26.6mm / 1.047in
height 14.5 mm / 0.571 in
depth 20.5 mm / 0.807 at set point
safety 1 in earthed networks
