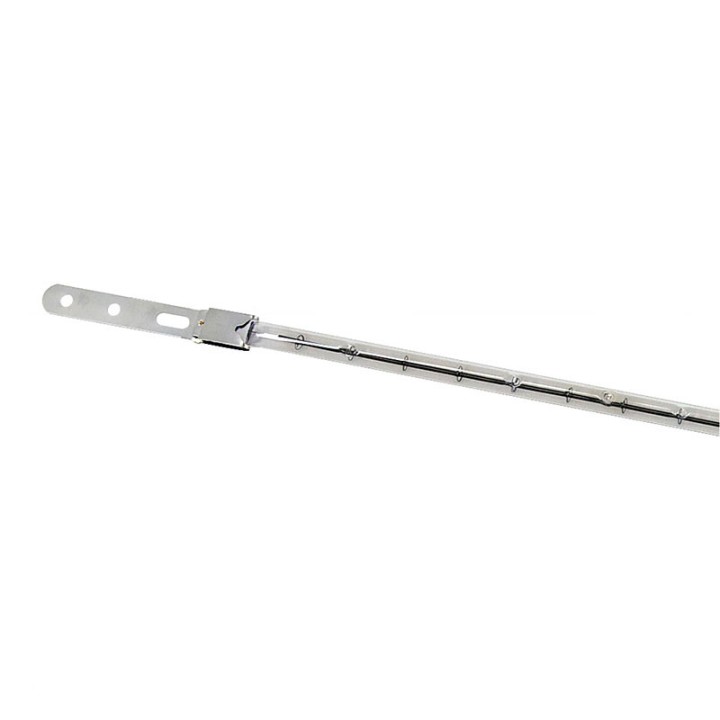

Quartz Infrared Bulb 230V 11x241mm DIRTECH

Double ended tubular halogen lamp used as a very powerful and efficient heat source for various industrial applications

- Instant heating: maximum power 1 second after ignition
- Clean: no pollution generated by infrared lamps and by the product
- Safety: lamp resistant to thermal shocks thanks to the quartz casing
- Economical: more than 85% of the energy consumed is transformed into infrared heat
- Full attenuation possibility: infrared lamps can be controlled with precision (from 0% to 100%)
- Possibility to place a sensor: the on / off switches do not affect the lifespan of infrared lamps
- Low maintenance: long service life, about 5,000 hours
- Heat can be focused: infrared lamps have the same optical properties as lighting lamps, i.e. heat can be directed by reflectors
- Compact heat source: infrared lamps have a small diameter

Characteristics

- High efficiency
- Paint drying in tunnels and in body shops
- Blowing of PETP bottles
- Thermoforming of plastics
- Softening, fusion of plastics
- Epitaxy, chemical vapor deposition, RTP, oxidation process in the semiconductor industry
- Heating and maintaining food temperature
- Paper drying
- Drying of varnishes, printing inks
- Preheating of the wood before varnishing
- Thermal sterilization

The spectral emission of these lamps is between 700 and 1800nm.

Professional applications:
Plastics: bottle blowing, thermoforming, processing of plastics, welding, screen printing, elongation of plastics
Paper materials: drying, photocopying, offset press, inkjet, screen printing
Food: catering, food processing
Wood and Composites: drying, heat setting, powder coating
Footwear and textiles: drying, heat setting
Metal: elongation of metal materials, coil coating, powder-type coating
Painting: bodywork, powder coating
Animal care: animal husbandry, veterinary clinic, zoos, pet shops
Beauty salons, heat treatments, thermoforming of plastics, stationery, printing, etc.

X / 98 and Z / 98 with reflector

Z - With cables
X - Without cables
98 - With reflector
