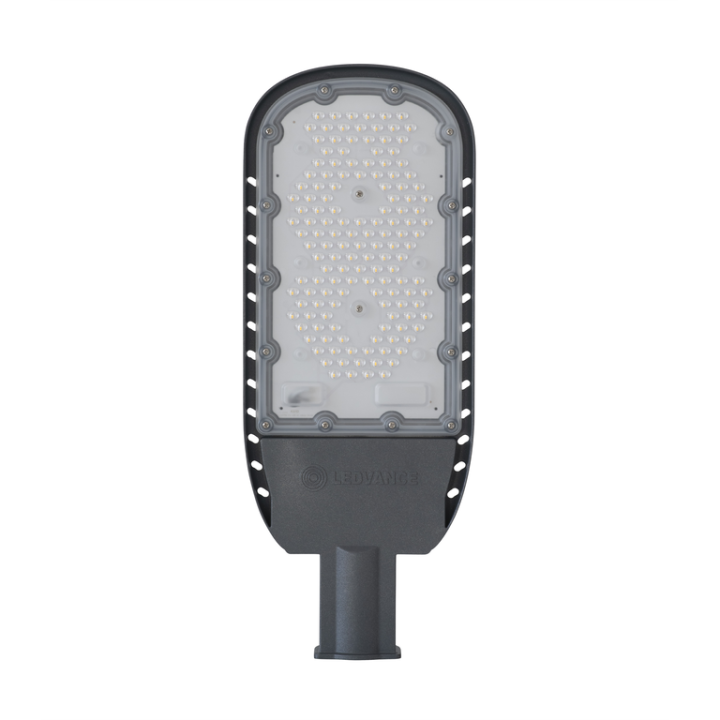

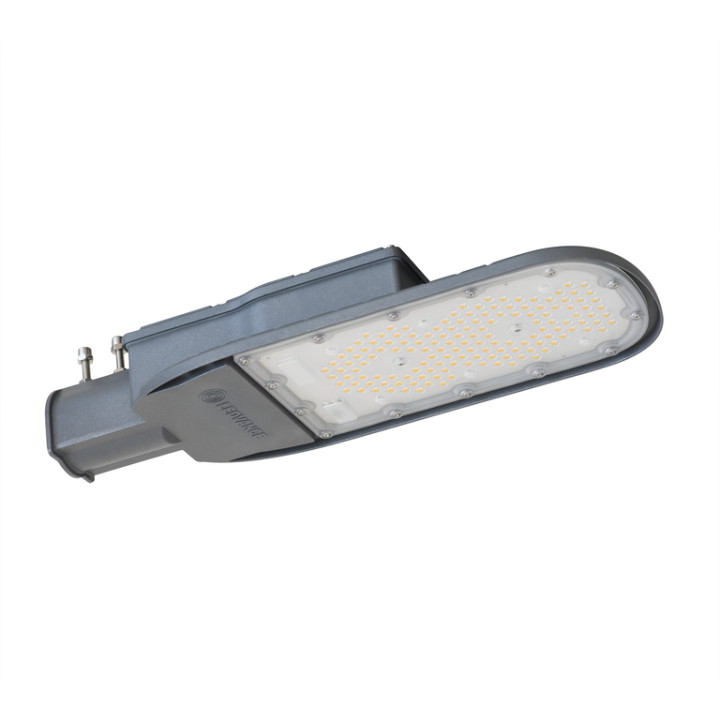

LDV AREA ECO SPD 90W/3000K 11250lm IP66 IK08 135°x75° 10kV Lantern LED
LDV AREA ECO SPD 90W/3000K 11250lm IP66 IK08 135°x75° 10kV Lantern LED

LDV AREA ECO SPD 90W/3000K 11250lm IP66 IK08 135°x75° 10kV Lantern LEDVANCE

LEDVANCE
€192.82
Tax included

Quantity Unit price You Save
4 €183.19 €38.50
Share

Product advantages

Functional and clean design
Low maintenance and operating costs thanks to the long life of the LEDs
5 year warranty

Product features

Asymmetric light distribution for various application areas
Rugged cast aluminum housing
Lateral mounting possible on masts with diameters of 48?60 mm
Surge protection: 10 kV (L/N-PE)
Built-in wide voltage converter (100 - 240 VAC)
Pre-installed 0.5m H05RN-F 3 x 1.0mm² flexible connection cable

Application areas

Beacon lighting
streets
Car parks
lighting area

  • Brand
  • Reference
    S060200557734
  • ean13
    4058075557734

  • -Z1 - FAMILY
    Luminaires
  • -Z3 - Implantation
    Sol
  • -Z4 - Emplacement
    Lampadaire
  • -Z4 - Technology
    LED
  • Power supply
    French sector
  • Electrical protection class
    I
  • Illumination color
    Blanc Chaud
  • Average nominal lifespan
    50000
  • Lamp efficacy
    125
  • Manufacturer
    LEDVANCE
  • Power factor
    0.95
  • Finition
    Gris
  • Luminous flux
    11250
  • Frequency
    50/60
  • Dimmable
    Non
  • IP classification
    66
  • IK classification
    IK08 Résistance à un impact de 5 joules
  • Width
    216
  • Overall lenght
    552
  • MAtter
    Alliage Aluminium
  • Certifications
    CE
    RG 1 Photobio 62471
  • Operating range
    -30 +50
  • Power
    90
  • Power source
    Integrated
  • Light source
    Integrated
  • Temperature at the thread
    650
  • Color temperature
    3000
  • Input voltage
    220-240
  • Input voltage type
    AC
  • indice stockage
  • packing height
    26.7
  • packing width
    52.4
  • packing weight
    16.154
  • packing qte
    4
  • delai sur commande
    8
  • packing longueur
    59.6
  • ecotaxe
    0.38
  • Angle
    125
  • pcb
    1
  • Weight
    3.4
  • Eprel
    1112827
  • statut
    Actif - En cours d'existence
