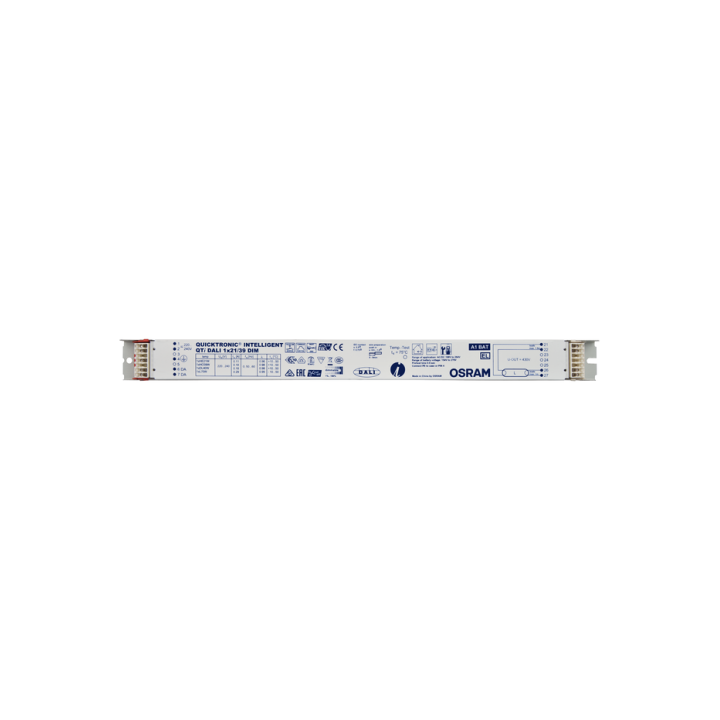

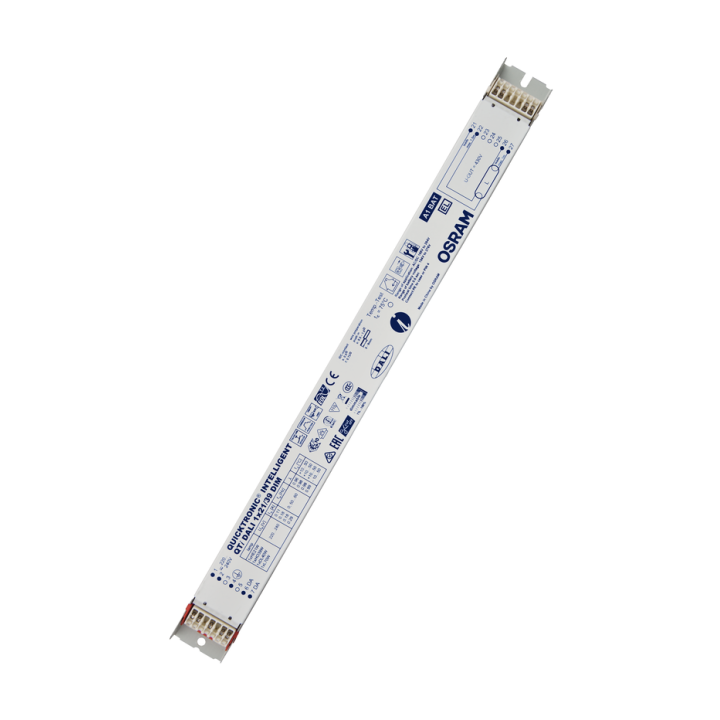

Dimmable Dali electronic ballast for 1 tube T5 21w 39w Osram

Product advantages

System+ warranty available
Easy integration into the luminaire thanks to the same dimensions as DALI GI ECG
TouchDIM function for easy and inexpensive dimming of multiple ballasts
Same luminous flux in direct and alternating current
Dimming of amalgam lamps without flickering or reduced life
Automatic restart after lamp replacement

DALI product features

Control via DALI interface
Compliance with DALI Version-1 and IEC 60929
Control input protected against overvoltage and reverse polarity (OSRAM ECG)

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start
Product Features
Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed lighting program
Touch DIM function for free setting of light value and switch-on time
Suitable for SMART GRID for feedback on mains power consumed and lamp operating hours
Suitable for emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.5 W
Service life: > 100,000 h (for T = 65°C at Tc)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100% (3…100% with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to the lamp over the lifetime of the lamp
Mains frequency: 0 Hz, 50…60 Hz, rectified AC
Application areas
Suitable for use in emergency lighting systems according to EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, annex J
Industry
Offices, corridors and storage rooms in open space
Public buildings
Gyms and factories
Strip lighting
Store lighting
Suitable for luminaires of protection class I
