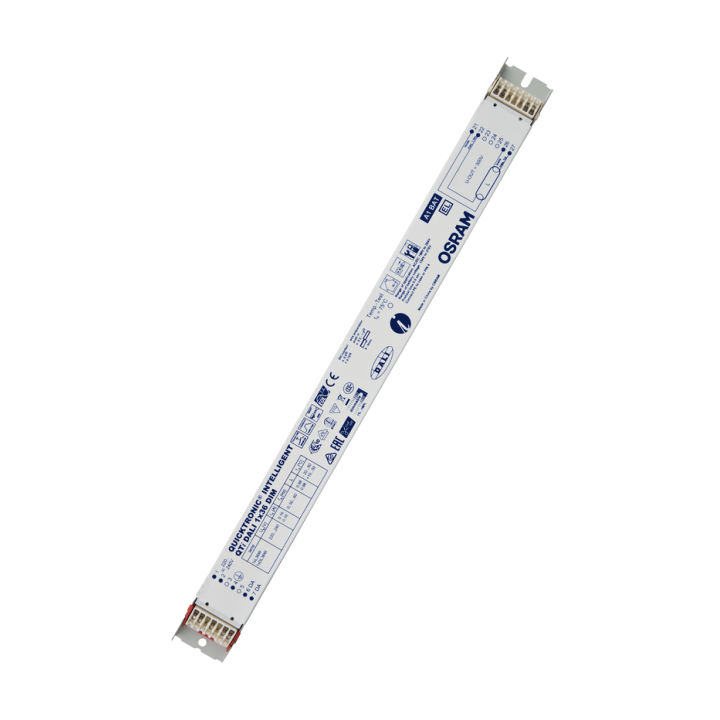

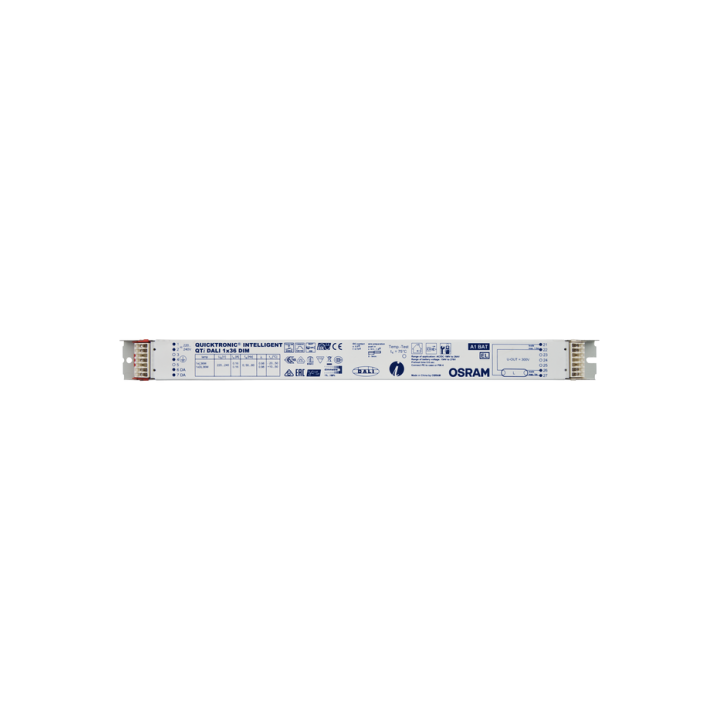

Dimmable Dali electronic ballast for 1 tube T8 36w Osram

Product advantages

System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG
TouchDIM function for easy and inexpensive dimming of several ECGs
Same luminous flux with direct and alternating current
Dimming of amalgam lamps without flickering or reduced lifespan
Automatic restart after lamp replacement

DALI product features

Control via the DALI interface
Compliance with the DALI Version-1 and IEC 60929
Control input protected against overvoltage and polarity reversal (OSRAM ECG)

Touch DIM and Touch DIM Sensor function

Manual dimming without controller and with standard switches
Including memory function (double click) and soft start
Product features
Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
Touch DIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.5 W
Lifetime: > 100,000 h (for T = 65 °C at Tc)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50…60 Hz, rectified AC
Application areas
Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Industry
Open-plan offices, corridors and storage rooms
public buildings
Sports halls and factories
strip lighting
Suitable for luminaires of protection class I
