Wago 224-112 Series terminal block, 1-pole, 24A

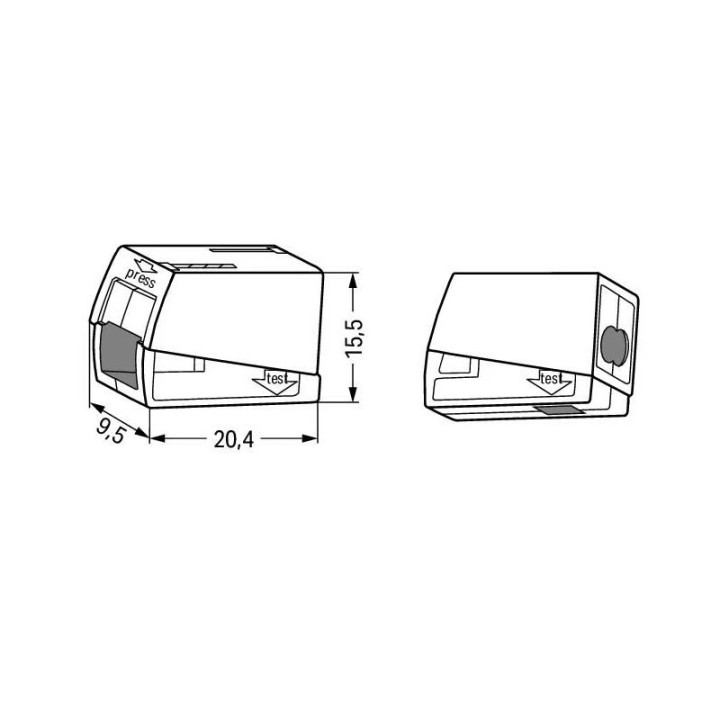

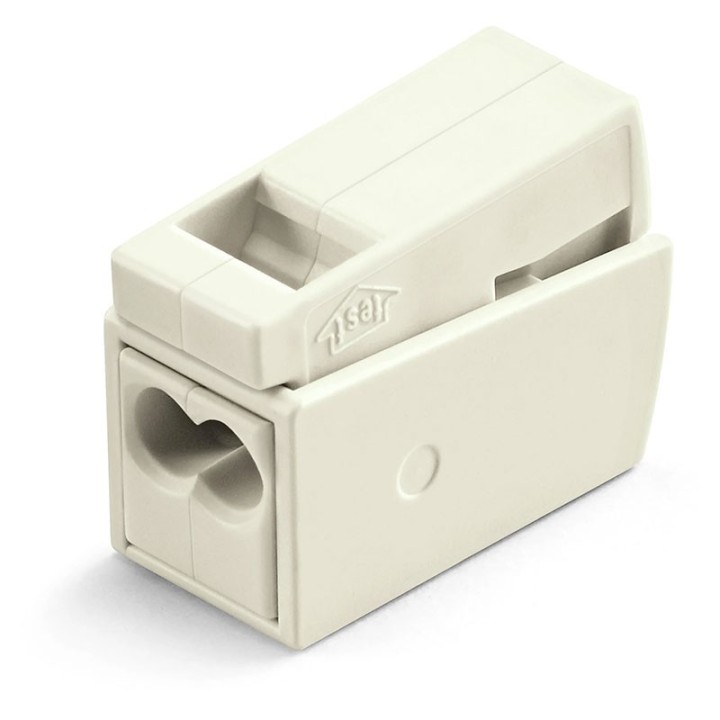

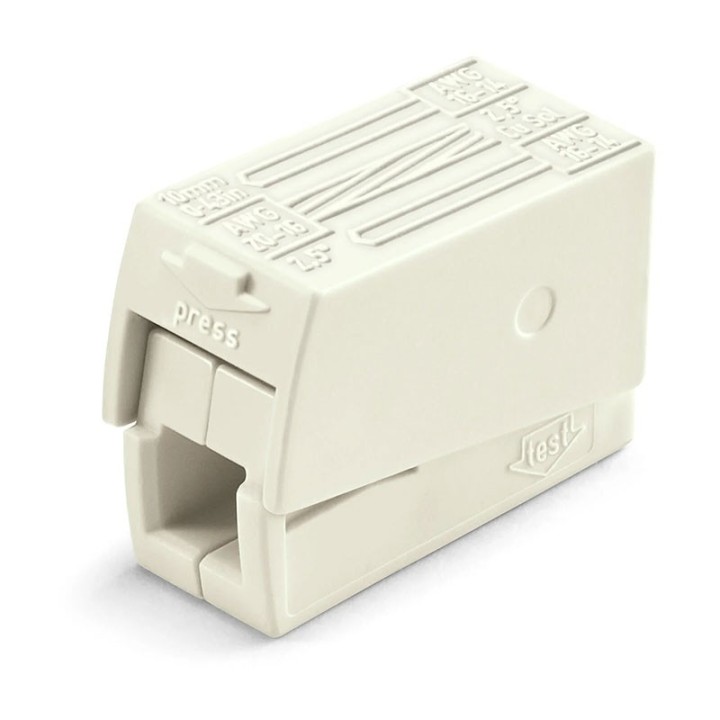

With the classic WAGO 224 connection terminal, up to two different conductor types can be easily and securely connected. Thanks to the practical lever function, no additional tools are required for installation. It is 9.5mm wide, 20.5mm long and 15.5mm high. The housing is white plastic.

The diameter of the connection point can vary from 0.5mm² to a maximum of 2.5mm², which makes it easier to connect all copper conductors to one or more wires. No further pre-treatment of the cables is necessary.

A 1 piece packaging unit is provided.

2-wire terminal, max.
Continuous use temperature 105°C

Other
Total number of terminal points 3
Total number of potentials 1
White color
Pollution degree : 2
Nominal voltage EN  [V] : 400 V
Rated surge voltage  [kV] : 4 kV
Nominal current 4 kV  [A] : 24 A
Connection technique : PUSH WIRE® single-wire

connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG

stripping length 1 9… 11 mm / 0.35… 0.43 inch

Wiring type Side wiring

Fire load [MJ] 0.047 MJ

Weight [g] 3.053 g

safety instruction 1 : in earthed networks
