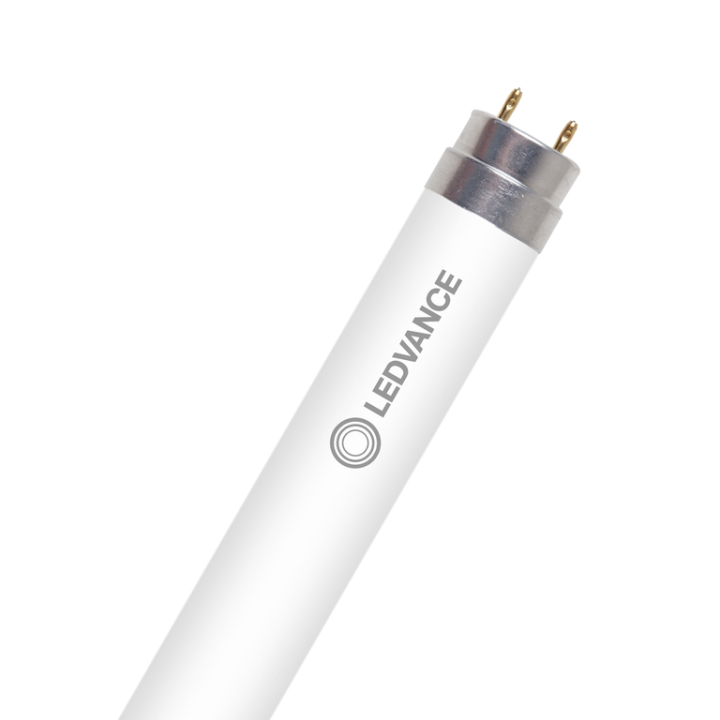

G13 Ext LED tube 15w = 36w 865 Dimmable on Dali power supply Glass 1200mm HT EM 220-240v Ledvance
Product Benefits
Simple upgrade to a dimmable LED system
Hassle-free application, no ballast compatibility check required
Suitable for emergency lighting (stand-alone battery pack)
Shatter protection thanks to special PET coating
No bending thanks to the glass tube
5 years warranty
Application areas
Industrial lighting (e.g. manufacturing plants, logistics centers, warehouses)
Linear lighting for offices, education, storage areas and retail
Shops, supermarkets
Product Features
Designed to power only with LED DRIVER LED EXTERNAL DALI TUBE
Glass lamp tube with shatter protection
Quality variation of 1…100%
High resistance to switching loads
Suitable for ambient temperatures of -20…+50°C
Safety tips
Operation possible in outdoor applications in luminaires suitable for humidity according to the technical data sheet and installation instructions.
The operating temperature range of the LED tube is limited. If in doubt regarding the suitability of the application, please measure the Tc max temperature on the product before installation.
-
-Z1 - FAMILYLampes
-
-Z4 - TechnologyLED
-
Power supplyLED Driver
-
Energy efficience labelD
-
Illumination colorBlanc Froid
-
BaseG13
-
Switching cycle200000
-
Diameter27
-
Average nominal lifespan50000
-
Lamp efficacy160
-
Equivalency1x36
-
ManufacturerLEDVANCE
-
Power factor0.90
-
Luminous flux2400
-
DimmableOui
-
IP classification20
-
Color rendering indice (CRI)80
-
Overall lenght1200
-
CertificationsCE
RG 0 Photobio 62471 -
Operating range-20 +50
-
Power15
-
Glass shadeOpale
-
Color temperature6500
-
indice stockage
-
packing height23.5
-
packing width19.7
-
packing weight6.332
-
packing qte25
-
delai sur commande8
-
packing longueur125.2
-
ecotaxe0.12
-
Angle190
-
pcb25
-
Weight0.19
-
Série730
-
Energy consumption15
-
text_informationtxt_nrne
-
Eprel161824
-
statutActif - En cours d'existence
