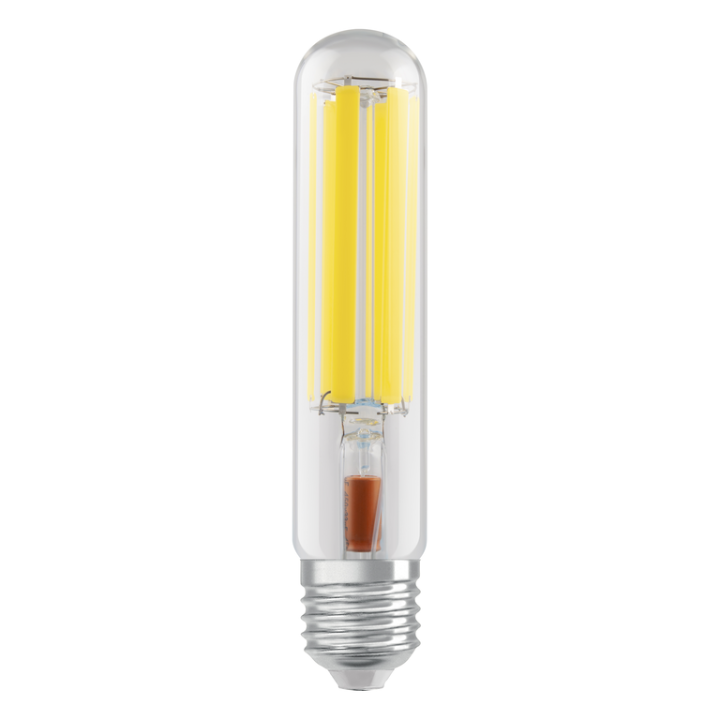

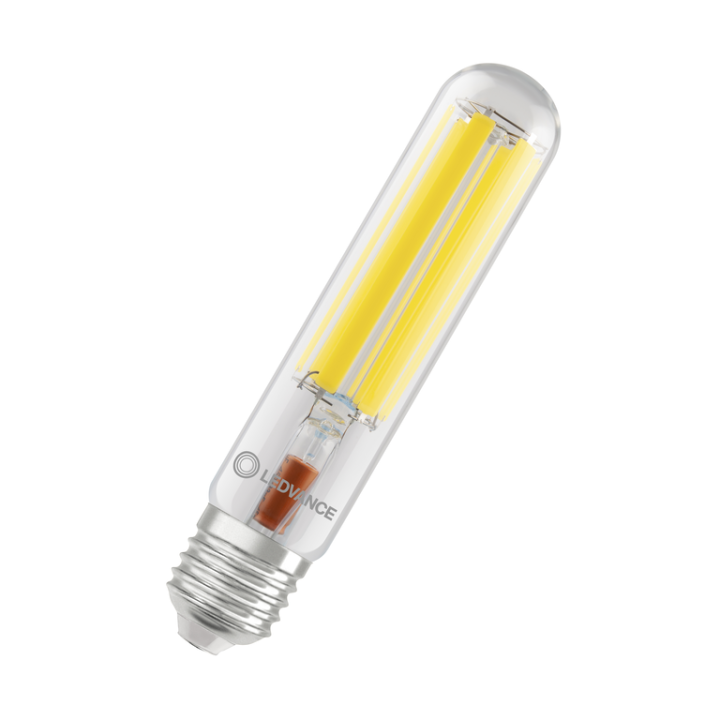

E40 NAV LED bulb 41W = 100W 7000 lm 2700K Ledvance

Product advantages

Same design as traditional NAV lamps with frosted ellipsoid full glass bulb
Full use of the existing luminaire reflector thanks to a 360 degree beam angle
Saves up to 78% energy when used as a replacement for sodium vapor lamps (NAV)
Instant ignition
Light distribution similar to traditional NAV lamps

Product features

Suitable for operation with conventional control gear (CCG) or 230 V AC network
Very high efficiency up to 190 lm/W
Power factor: 0.9
Type of protection: IP65
Surge protection: up to 2 kV (L-N)

Application areas

streets
lighting area
Pedestrian zones
Parks
Outdoor use only in suitable fixtures

Safety tips
Not suitable for use with an igniter or capacitor.
Suitable for connection to a ballast only.
When installed horizontally, the tc point of the lamp is located on the upper side of the lamp.
Not recommended for use in narrow fixtures and fixtures with narrow reflectors.
Only suitable for temperatures up to 50°C inside the luminaire. Not recommended for use in small luminaires and in luminaires with small reflectors.
