Product advantages

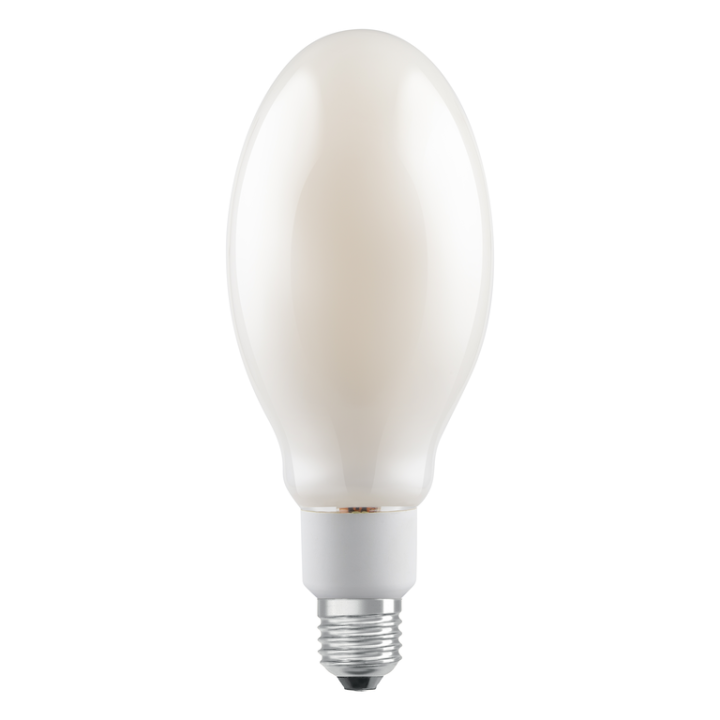

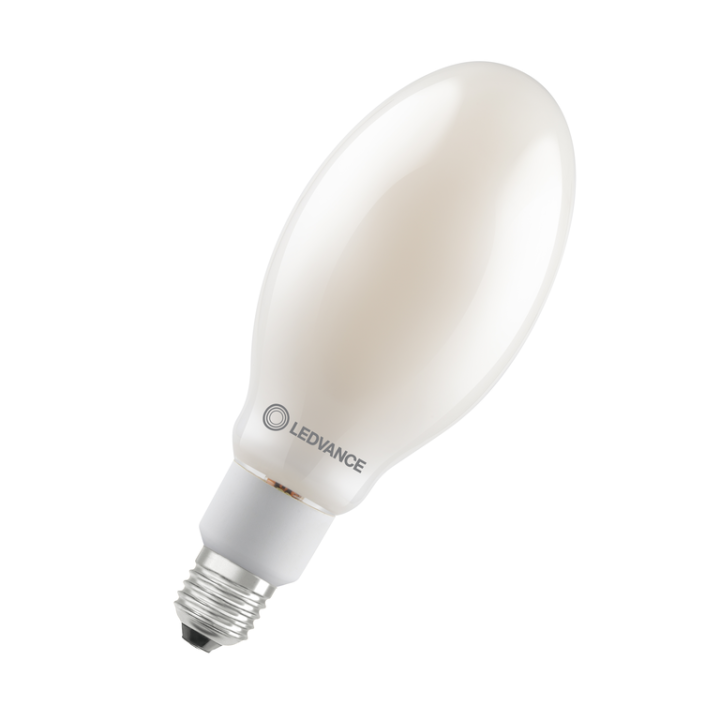

Same design as traditional HQL lamps with frosted glass and ellipsoid bulb
Full use of the existing luminaire reflector thanks to a 360 degree beam angle
Saves up to 78% energy by replacing mercury vapor lamps (HQL)
Instant ignition
Application areas
streets
lighting area
Pedestrian zones
Parks
Outdoor use only in suitable fixtures
Product Features
Replacement of HQL: suitable for operation with conventional power supply for HQL or on direct 230 V connection
Replacement for other HID: Suitable for operation with line voltage without control gear
Power factor: 0.9
Type of protection: IP65
Surge protection: up to 2 kV (L-N)
Safety tips
Not suitable for use with primer
Capacitor operation can cause a decrease in system power factor.
When installed horizontally, the tc point of the lamp is located on the upper side of the lamp.
Not recommended for use in narrow fixtures and fixtures with narrow reflectors.
Only suitable for temperatures up to 50°C inside the luminaire. Not recommended for use in small luminaires and in luminaires with small reflectors.
-
-Z1 - FAMILYLampes
-
-Z4 - TechnologyLED
-
Power supplyFrench sector
HQL Ferromagnetic Ballast -
Energy efficience labelD
-
BaseE27
-
Switching cycle100000
-
Diameter90.00
-
Average nominal lifespan25000
-
Lamp efficacy142
-
Equivalency125
-
ManufacturerLEDVANCE
-
Power factor0.90
-
Luminous flux5400
-
FormOvoïde
-
Frequency50/60
-
Manufacturer warranty (year)5
-
DimmableNon
-
IP classification65
-
Color rendering indice (CRI)80
-
Current0.16
-
Overall lenght217.00
-
CertificationsCE
RG 1 Photobio 62471 -
Operating range-20 +50
-
Power38
-
Glass shadeOpale
-
Color temperature2700
-
Input voltage220
-
Input voltage typeAC
-
indice stockage
-
packing height27.8
-
packing width24.2
-
packing weight2.195
-
packing qte6
-
delai sur commande8
-
packing longueur35.6
-
ecotaxe0.12
-
Angle360.00
-
pcb1
-
Weight0.21
-
Energy consumption38.00
-
text_informationtxt_br_HQL
txt_br_secteur
txt_secteur -
Eprel371167
-
statutActif - En cours d'existence
