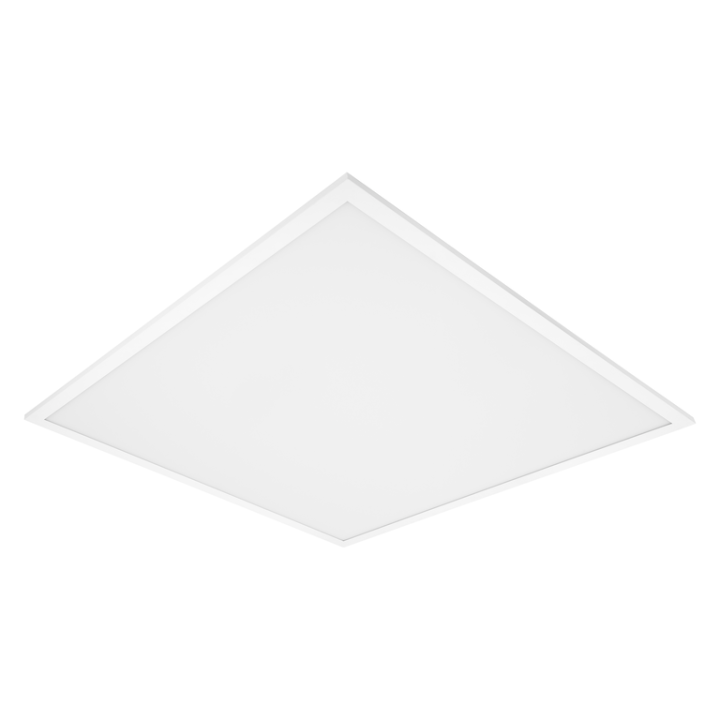

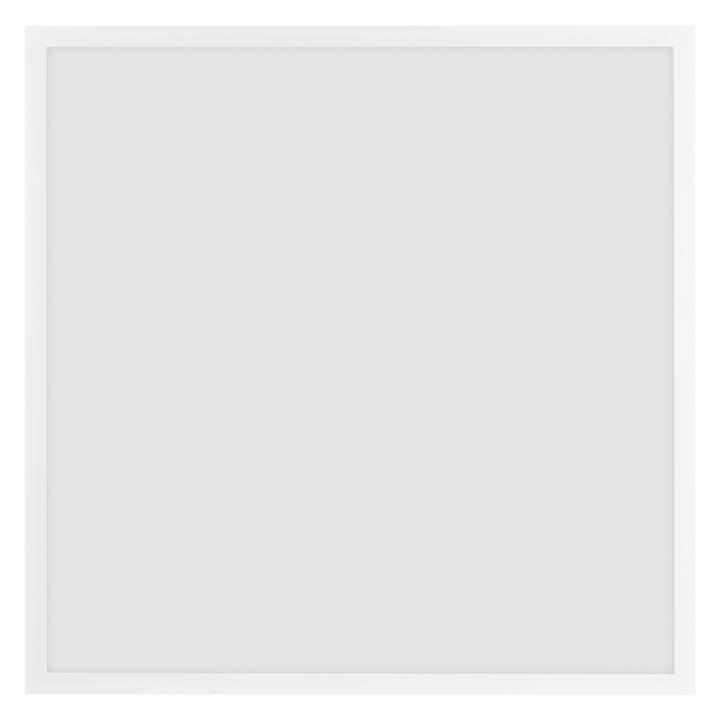

Recessed Panel Slab 60x60cm 30W/4000K 3600lm UGR19 IP40 Panel Ledvance

Product benefits

Tool-free electrical connection thanks to push-button connector
Through-wiring possible with included connection box
Energy savings thanks to high system efficiency: up to 120 lm/W
Appropriate glare reduction (UGR < 19)
Optional: extended services such as energy consumption monitoring and preventive maintenance with DALI versions
Comfortable light and high color uniformity
External converter for greater flexibility and easier installation
Low flicker thanks to special electronic ballast
5 year warranty

Product characteristics

Extruded aluminum frame
Polystyrene diffuser
3-wire terminal block, cable section up to 3 x 2.5 mm² (25 W and 30 W versions)
5-pole terminal block, cable cross-section up to 5 x 2.5 mm² (36 W versions and DALI types)
Luminaires with DALI-2 IoT-ready power supply or Zigbee 3.0 IoT technology available
Versions with CRI 90 available
Lifetime (L80/B10): up to 60,000 h (at 25 °C)

Application areas

Direct replacement of fixtures with fluorescent lamps
Offices, conference rooms
Reception areas, corridors, elevators
Suitable for recessed systems with grille dimensions 600 x 600 mm

Technique / Accessories

Accessories for multiple mounting options available
Connection box with 3-wire or 5-wire terminal block included
Safety cable for luminaire provided
Safety hooks included
External ballast included
Not suitable for use with emergency conversion box
