LDV PL Compact 1200x600 53W/4000K 5830lm UGR19 IRC80 IP40 Panel Ledvance

LEDVANCE OSRAM
€97.38
Tax included

Quantity Unit price You Save
6 €92.53 €29.09
The minimum purchase order quantity for the product is 2.
Share

Product benefits

Appropriate glare reduction (UGR < 19)
Low flicker thanks to special electronic ballast
Energy savings thanks to system efficiency of up to 110 lm/W
External converter for greater flexibility and easier installation
Versions with DALI power supply available
5 year warranty

Product characteristics

Extruded aluminum frame
Polystyrene diffuser
Lifespan (L80 / B10): up to 50,000 h (at 25°C)

Application areas

Direct replacement of fixtures with fluorescent lamps
Offices, conference rooms
Reception areas, corridors, elevators
Suitable for recessed ceilings with a 1200 x 600 mm grid

Technique / Accessories

Accessories for multiple mounting options available
Safety cable for luminaire provided
Pre-installed security brackets
External ballast included
Suitable for use with a separate emergency conversion box
Junction box with 5-pole terminal for through-wiring available separately for cable cross-sections up to 2.5 mm²

  • Brand
  • Reference
    P050200017643
  • ean13
    4099854017643

  • -Z1 - FAMILY
    Luminaires
  • -Z3 - Implantation
    Plafond
  • -Z4 - Emplacement
    Encastré
  • -Z4 - Technology
    LED
  • Power supply
    French sector
  • Electrical protection class
    II
  • Illumination color
    Blanc
  • Average nominal lifespan
    70000
  • Lamp efficacy
    110
  • Manufacturer
    LEDVANCE
  • Power factor
    0.90
  • Finition
    Blanc
  • Luminous flux
    5830
  • Form
    Rectangle
  • Frequency
    50/60
  • Manufacturer warranty (year)
    5
  • Dimmable
    Non

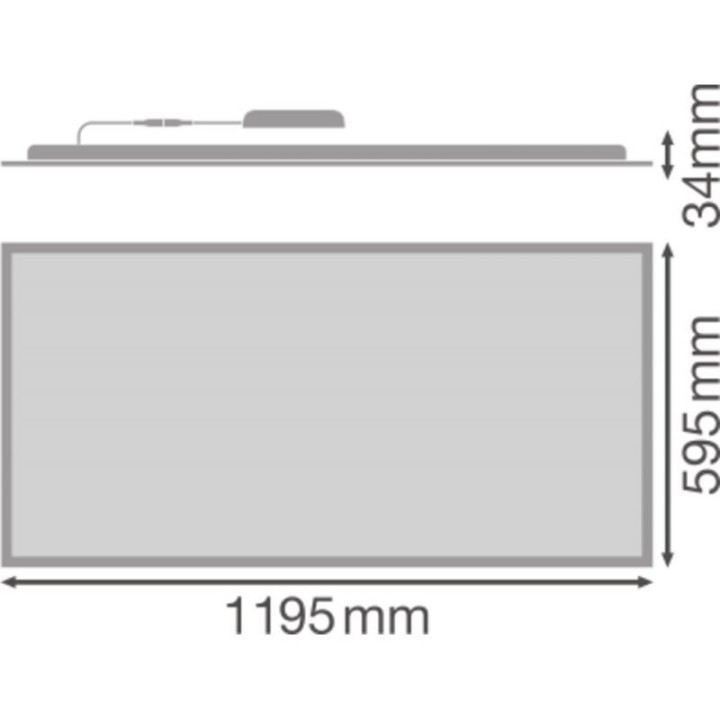

  • Height
    34.00
  • Implantation
    Plafond
  • IP classification
    40
  • IK classification
    IK02 Résistance à un impact de 0.2 joules
  • Color rendering indice (CRI)
    80
  • Current
    0.23
  • Width
    595.00
  • Overall lenght
    1195.00
  • MAtter
    Acier
  • Certifications
    CE
    RG 0 Photobio 62471
    TÜV
  • Power
    53.00
  • Power source
    Included
  • Light source
    Integrated
  • Glass shade
    Opale
  • Temperature at the thread
    650
  • Color temperature
    4000
  • Input voltage
    240
  • Input voltage type
    AC
  • indice stockage
  • packing height
    62.4
  • packing width
    9.2
  • packing weight
    11.34
  • packing qte
    2
  • delai sur commande
    8
  • packing longueur
    128
  • ecotaxe
    0.3
  • Angle
    110
  • pcb
    2
  • Weight
    4
  • Eprel
    1271727
  • statut
    Actif - En cours d'existence
