Product Advantages
No bending thanks to the glass tube
Quick, easy, and safe replacement without rewiring
Up to 60% energy savings (compared to a T8 fluorescent lamp)
Very high resistance to switching cycles (on/off)
High luminous intensity for complex lighting tasks
Also suitable for operation in low temperatures
Product Features

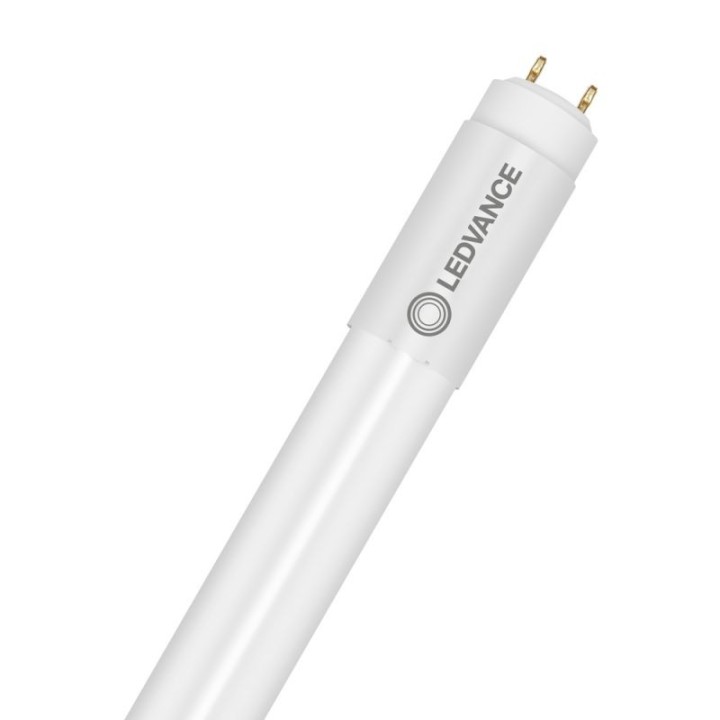

LED replacement for conventional T8 fluorescent lamps with a G13 base for use in CCG, ECG, or AC mains luminaires
Compatible with most conventional and common electronic control devices (see also Hyperlink target="https://www.ledvance.com/substiTUBE" compatibility list) and mains voltage
Low flicker according to EU 2019/2020 (SVM ≤ 0.4 / PstLM ≤ 1)
Glass lamp tube with shatterproof protection
For particularly uniform illumination
Mercury-free and compliant with RoHS compliant
Protection rating: IP20
Lifespan: Up to 60,000 hours
Applications
General lighting in ambient temperatures from -20°C to +45°C
Production area lighting
Circuiting areas and corridors
Supermarkets and department stores
Industrial settings
-
-Z1 - FAMILYLampes
-
-Z4 - TechnologyLED
-
Power supplyBallast Ferromagnétique CCG
Electronic Ballast
French sector -
Energy efficience labelD
-
Illumination colorBlanc
-
BaseG13
-
Switching cycle200000
-
Diameter27.80
-
Average nominal lifespan60000
-
Lamp efficacy160
-
Equivalency36
-
ManufacturerLEDVANCE
-
Power factor0.90
-
Luminous flux2400-2400
-
Frequency50/60
-
DimmableNon
-
IP classification20
-
Color rendering indice (CRI)80
-

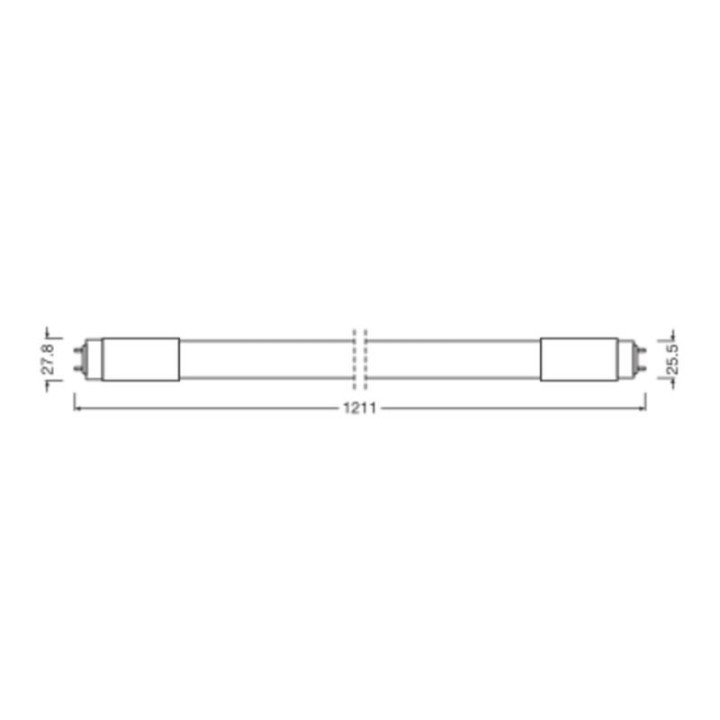

Overall lenght1211.00
-
CertificationsCE
IFS Food
RG 0 Photobio 62471 -
Operating range-20 +50
-
Power15-15
-
Glass shadeOpale
-
Color temperature4000-4000
-
Input voltage220-240
-
Input voltage typeAC
-
indice stockage
-
packing height11.5
-
packing width21
-
packing weight3.46
-
packing qte10
-
delai sur commande8
-
packing longueur135.2
-
ecotaxe0.12
-
Angle190.00-190.00
-
pcb1
-
Weight0.254
-
Série026
-
Energy consumption15.00
-
text_informationtxt_br_tube_univ
-
Eprel1317778
-
statutActif - En cours d'existence
