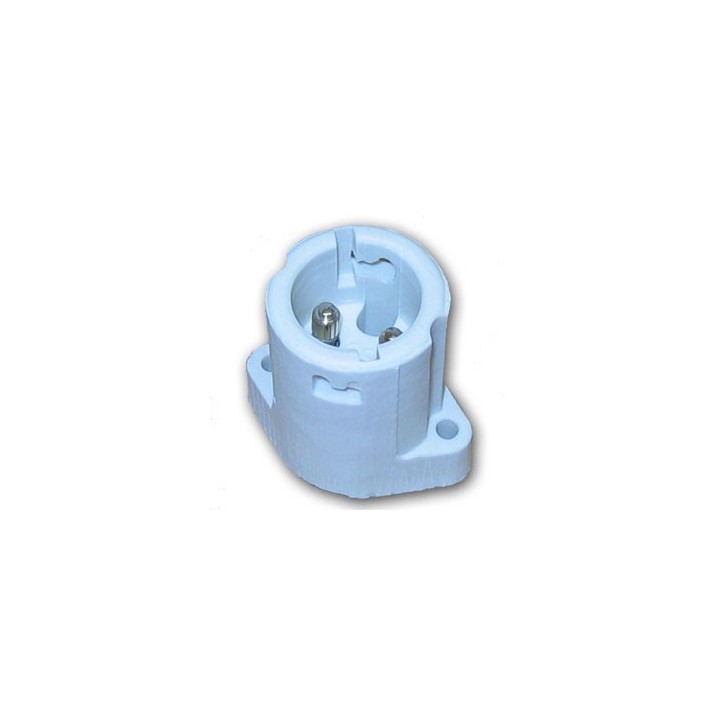

Lampholder BY22D / B22 base Ceramic 4A 250v

Socket Type: BY22D
Socket Material: Ceramic
Rated current: 4A
Rated voltage: 250V

The BY22D socket is designed to accommodate bulbs with a BY22D base. Ceramic is a commonly used material for lampholders due to its heat resistant and electrical insulating properties. The BY22D ceramic socket is capable of withstanding a rated current of 4A and a rated voltage of 250V.

Minimum indication of the holes recommended for the passage of the cables (if necessary): possible fixing of the socket by two holes of Ø 3.6 mm with a center distance of 16 mm or 2 holes of Ø 4.5 mm with a center distance of 36mm.
4A 250V - Temp. maximum use: 250°.
Screw terminals - For 0.5 to 1 mm cable.
IP20.
External dimensions: Ø 32 x width 48 mm.
Nickel-plated brass contacts.
Normalized steel contact pressure springs.
Connection terminals to be screwed in nickel-plated brass, with non-blocking slotted head screws.
