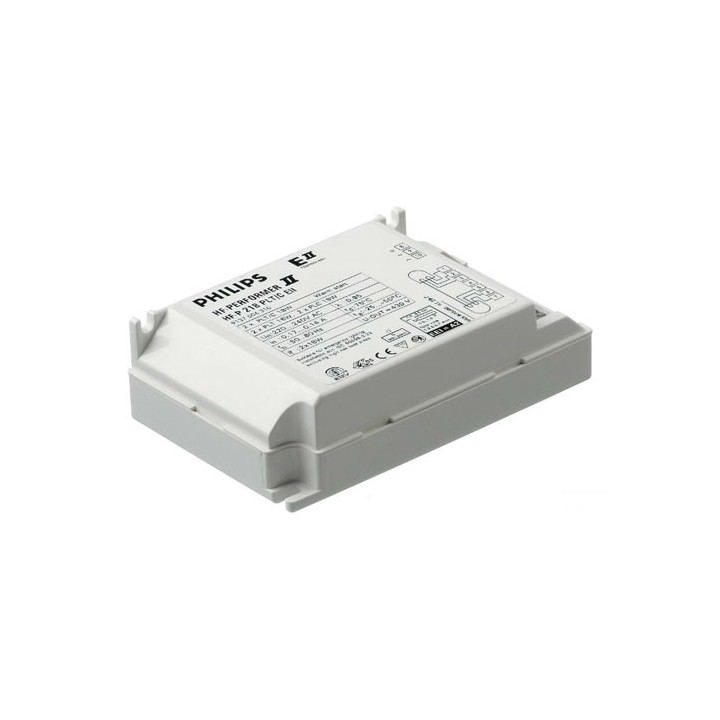

Electronic Ballast for T5C=1x22w/1x40w DE=26w 2D=38w TE=1x26/32/42w L=1x18/24w Philips

Features and Benefits

• Unique benefits of the new Philips EII technology:
• Programmed start: flicker-free, warm start circuit preheating (0.5 s) the lamp electrodes; this enables the lamps to be switched on and off without reducing usefu life
• Smart power: constant light independent of mains voltage fluctuations
• Unit is protected against excessive mains voltages and incorrect connections
• Automatic stop circuit is activated within 5 seconds in case of lamp failure (safety stop); once the lamp has been replaced, the ballast resets automatically
• Equipped with universal connector for both manual and automatic wiring
• Optimized system efficiency, minimized ballast power losses
• Miniaturised dimensions for HF-Performer compact gear range
• Simplified standardized portfolio allowing flexible, modular luminaire design
• Cooler product allows more compact luminaire design
• Fast preheat for short ignition time (0.5 s)

Applications

• Ideal for applications with high switching frequency, typical application areas include:
• Use with infrared remote control systems (e.g.movement detection)
• Department stores, shops, supermarkets, hotels, hospitals, office buildings, industrial premises
