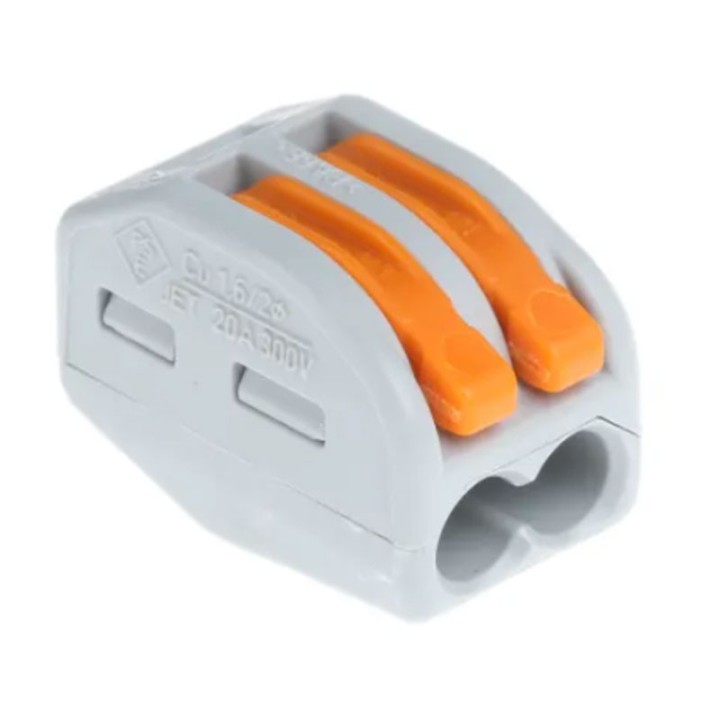

Wago 222-412 Series terminal block, 2-pole, 22A

With the classic WAGO 222 connection terminal, up to two different conductor types can be easily and securely connected. Thanks to the practical lever function, no additional tools are required for installation. It is 12.4mm wide, 20.5mm long and 14.5mm high. The housing is gray plastic, with the levers in orange.

The diameter of the connection point can vary from 0.08mm² to a maximum of 4mm², which makes it easier to connect all copper conductors to one or more wires. No further pre-treatment of the cables is necessary.

EAN: 4050821346470

A 1 piece packaging unit is provided.

2-wire terminal, with control levers, max. Continuous use temperature 85 ° C

Other

Name Value Unit

Total number of terminal points 2

Total number of potentials 1

Grey color

Pollution degree (1) 2

Nominal voltage EN (1) [V] 400 V

Rated surge voltage (1) [kV]

Nominal current 4 kV (1) [A] 32 A

Connection technique 1 CAGE CLAMP® single-wire

, connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG

stranded, connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG

finely stranded, connectable 1 0.08 ... 4 mm² / 28 ... 12 AWG

stripping length 1 9… 10 mm / 0.35… 0.39 inch

Wiring type Side wiring

Fire load [MJ] 0.067 MJ

Weight [g] 3.053 g

Width 12.4 mm / 0.488 in

height 14.5 mm / 0.571 in

depth 20.5 mm / 0.807 in

safety instruction 1 in earthed networks
