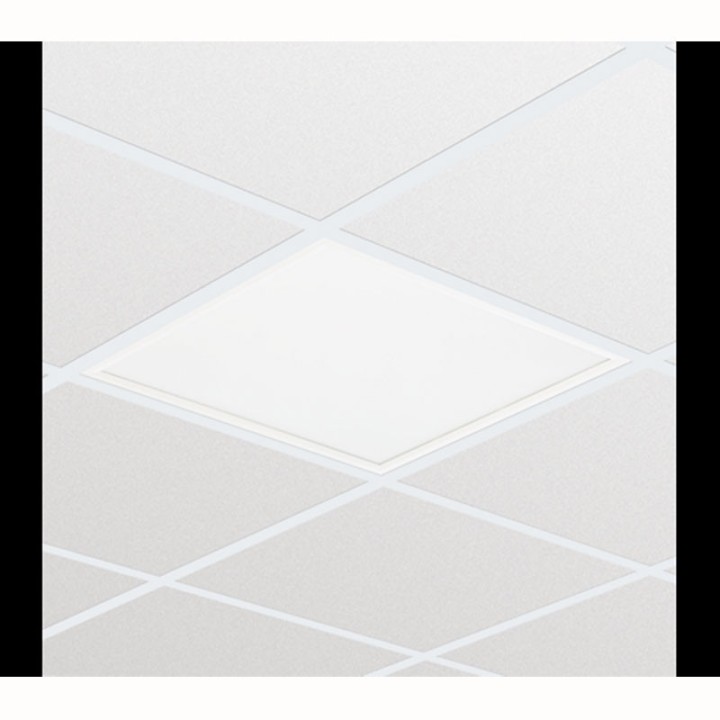

Recessed Panel White Led RC132V G4 LED36S/840 PSU W60L60 OC Philips

Recessed Panel White Led RC132V G4 LED36S/840 PSU 60x60cm OC Philips

PHILIPS
€29.65
Tax included

Quantity Unit price You Save
12 €28.18 €17.71
The minimum purchase order quantity for the product is 6.
Share

CoreLine Panel gen4 keeps the promise of the CoreLine offer: high quality luminaires, innovative, simple and quick to install, ready to directly replace conventional luminaires in general lighting applications.
The innovative CoreLine Panel gen4 MultiLumen / Colors version offers the possibility of choosing the color temperature (3000 or 4000K) and the flow (3400lm or 4000 lm in 3000K and 3600lm or 4300lm in 4000K) most suited to the application on the site even installation thanks to two switches on the back of the luminaire.
And, thanks to the new connector, installation is quick, easy and without tools.



PSU non gradable

  • Brand
  • Reference
    P050100360416
  • ean13
    8710163360416

  • -Z1 - FAMILY
    Luminaires
  • -Z3 - Implantation
    Plafond
  • -Z4 - Emplacement
    Encastré
  • -Z4 - Technology
    LED
  • Power supply
    French sector
  • Electrical protection class
    II
  • Illumination color
    Blanc
  • Average nominal lifespan
    50000
  • Lamp efficacy
    123
  • Manufacturer
    PHILIPS
  • Power factor
    0.9
  • Finition
    Blanc
  • Luminous flux
    3600
  • Form
    Carré
  • Frequency
    50/60
  • Manufacturer warranty (year)
    5
  • Dimmable
    Non
  • IP classification
    20
  • IK classification
    IK03 Résistance à un impact de 0.35 joules
  • Color rendering indice (CRI)
    80
  • Width
    595
  • Overall lenght
    595
  • MAtter
    Alliage Aluminium
  • Certifications
    CE
    ENEC
    RG 0 Photobio 62471
    Rohs
    UGR 19 Eclairage des bureaux
  • Operating range
    - 10 + 40
  • Recessed depth
    40
  • Power
    29
  • Power source
    Included
  • Light source
    Integrated
  • Glass shade
    Opale
  • Temperature at the thread
    650
  • Color temperature
    4000
  • Input voltage
    220-240
  • indice stockage
    4 - Ni repris ni échangé
  • packing width
    59.5
  • packing weight
    3.2
  • packing qte
    1
  • delai sur commande
    10
  • Volume class
    2
  • packing longueur
    59.5
  • ecotaxe
    0.17
  • Angle
    90
  • pcb
    6
  • Weight
    3.2
  • statut
    Actif - Fin de vie

8710163360416

Fiche technique

Download (491.52KB)
