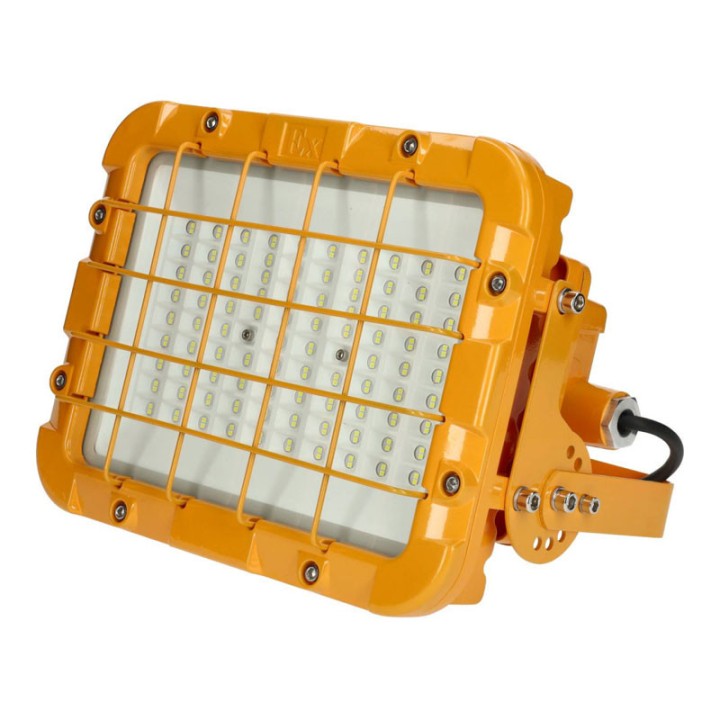

Projector ATEX led 150w 16000Lm IP66 Zones 1 & 2, Zones 21 & 22

the complete ATEX catalogue

The 150W ATEX LED floodlight is designed for installation in industrial environments with a risk of explosion due to the presence of flammable gases or combustible dust. Designed to illuminate medium to large ATEX zones, it complies with the ATEX Directive 2014/34/EU, guaranteeing safe operation in zones 1, 2, 21, and 22.

This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, providing powerful, stable, and efficient lighting, even in demanding industrial conditions.

High luminous efficacy and industrial reliability
With a power output of 150W, this floodlight delivers a luminous flux of 16,500 lumens, ensuring wide and even illumination in large spaces. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.

Designed for extreme conditions
The spotlight has an IP66 rating, making it dustproof and waterproof, as well as an IK10 impact resistance rating, suitable for indoor and outdoor use in extreme conditions. It operates in a temperature range of -20°C to +40°C.

Its aluminum housing with WF2 anti-corrosion treatment ensures maximum durability in harsh industrial environments.

Installation and technical considerations
It includes an adjustable bracket allowing for installation on walls, ceilings, or poles, depending on the project requirements.

The power cable is not included. A cable suitable for the specific ATEX environment, with a minimum diameter of 7 mm, compatible with the luminaire's cable gland, must be used.

Recommended Applications
The 150W ATEX LED floodlight is ideal for the following environments:

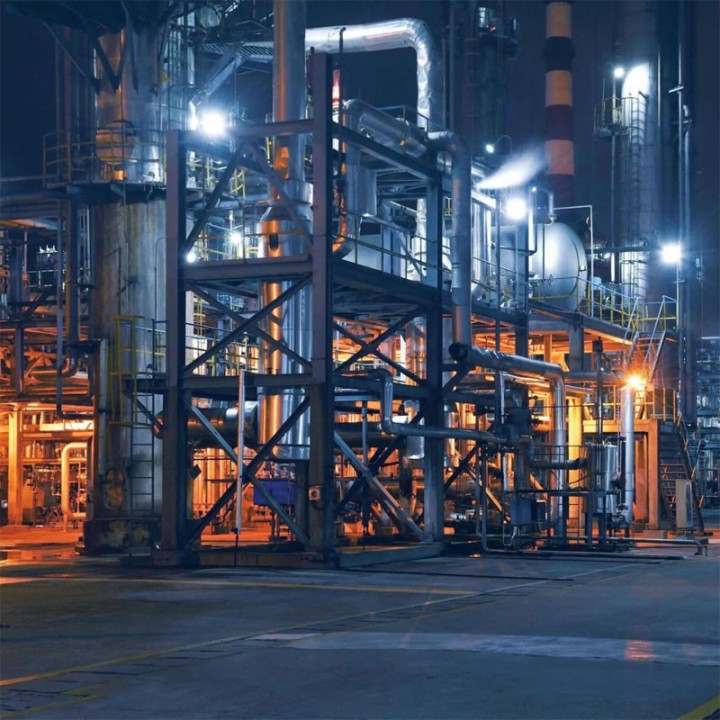

Medium to large-sized chemical or pharmaceutical sites
Industrial production areas with potentially explosive atmospheres
ATEX industrial parking lots and logistics areas
Loading and unloading areas with flammable gases or combustible dust
Industrial facilities requiring high light coverage
Recommended installation height: 6 to 8 meters.
