Projector ATEX led 200w 22000Lm IP66 Zones 1 & 2, Zones 21 & 22

the complete ATEX catalogue

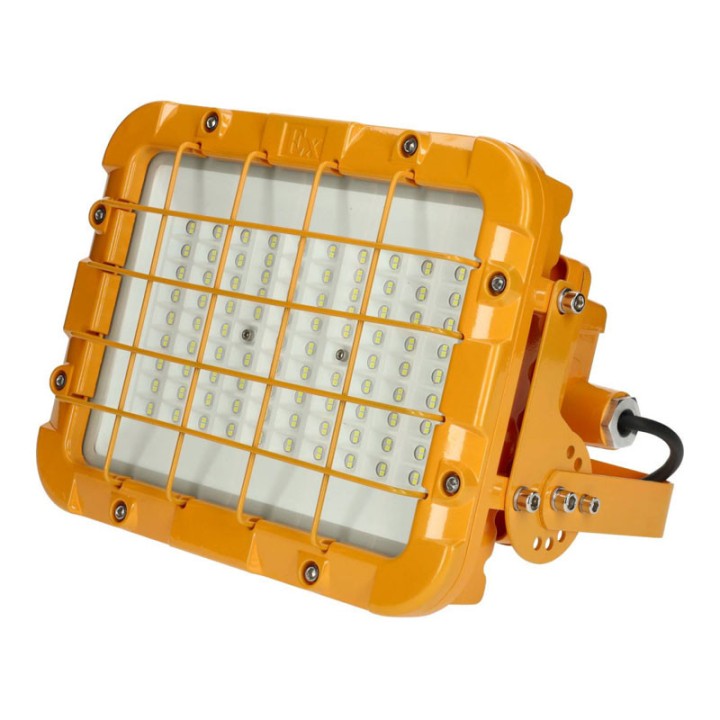

The 200W ATEX LED floodlight is designed for installation in industrial environments with a risk of explosion due to the presence of flammable gases or combustible dust. Designed to illuminate large ATEX spaces and areas with high lighting requirements, it complies with the ATEX Directive 2014/34/EU, guaranteeing safe operation in zones 1, 2, 21, and 22.

This model incorporates high-performance Lumileds 3030 LED chips and a Mean Well driver, providing powerful, stable, and efficient lighting even in large industrial environments and extreme conditions.

High luminous performance and industrial reliability
With a power output of 200W, this floodlight delivers a high luminous flux, ideal for the homogeneous illumination of large areas and overhead installations. Its lifespan of up to 50,000 hours significantly reduces maintenance and replacement costs.

Designed for extreme conditions
The spotlight has an IP66 rating for protection against dust and water, as well as IK10 impact resistance, making it suitable for indoor and outdoor use in harsh conditions. It operates reliably in a temperature range of -20°C to +40°C.

Its aluminum housing with WF2 anti-corrosion treatment ensures maximum durability and resistance in aggressive and exposed industrial environments.

Installation and technical considerations
It includes a reinforced adjustable bracket allowing for wall, ceiling, or pole mounting, particularly suitable for overhead installations and large industrial areas.

The power cable is not included. A cable suitable for the specific ATEX atmosphere, with a minimum diameter of 7 mm, compatible with the luminaire's cable gland, must be used.

Recommended Applications
The 200W ATEX LED floodlight is ideal for:

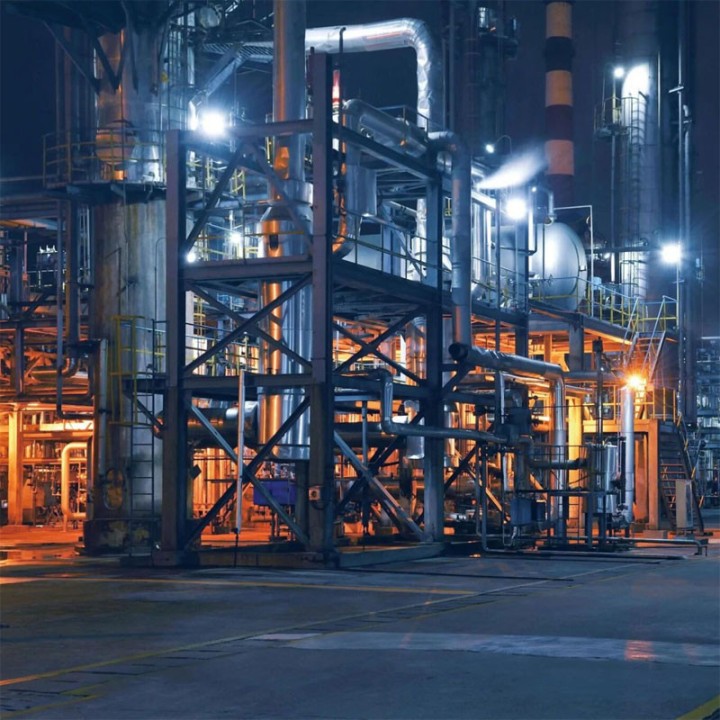

- Large industrial and petrochemical plants

- Refineries, ports, and ATEX-rated outdoor areas

- High-bay industrial warehouses

- Large production and storage areas

- Industrial facilities requiring maximum light coverage

Recommended installation height: 8 to 12 meters.
